FRP Cable Bracket

FRP Cable Bracket,Cable Tray Bracket,SMC Cable Bracket,FRP cable bracket support,Fiberglass Cable Bracket

FRP Cable Bracket is produced with resin as matrix, glass fiber as reinforcing material by the advanced SMC technology. Compared to traditional steel cable bracket, it has the following advantages and is widely used in a wide range of industries.

1. High strength, light weight, convenient transportation and simple construction.
2. Good flame retardance properties, and products have a smooth surface, the friction coefficient is small, does not damage the cable, also not conductive, no need for grounding, easy for installation.
3. Water resistance, corrosion resistance, no rust, long life and difficult to aging.
4. Heat-resistant has excellent fireproof performance.
5. Can drill, tapping screws, has large expansion space, can also be cut according to user’s requirements, without maintenance.
6. There is no recycling value, can prevent thefts.

Product Category:

Fiberglass reinforced plastics cable brackets divided into Signal cable bracket, socket type, directly buried type cable bracket, plate type cable bracket and combined suspension type cable bracket.

  • Signal cable bracket (CGXZ series)

    This bracket is a socket type bracket designed for signal or control cables or laying fixed. Bottom bracket is a lot of “concave” slip tank for easy cable lacing fixed.

    Signal Type Bracket Photo Signal Type Bracket Project

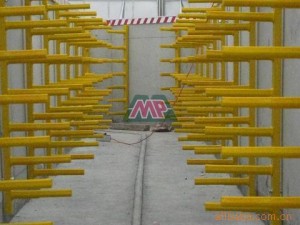

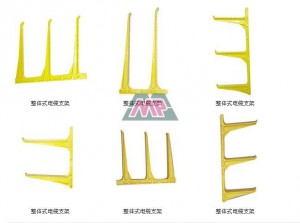

    Signal Type Bracket Signal cable bracket
    Signal cable bracket Specification
    Model No. Size Unit Total Length Buried Length Effective length
    Signal type bracket 250/4 mm 250 / 250
    Signal type bracket 300/4 mm 300 / 300
    FRP Cable Bracket Producing Process

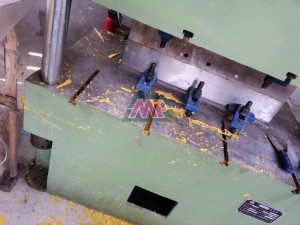

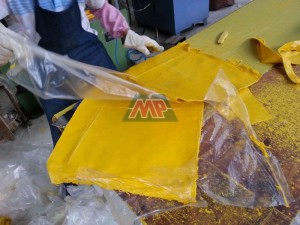

     Prepare the SMC Sheet laying on the moulds Hydraulic SMC Machine Pressed the bracket
    Prepare the SMC Sheet laying on the press moulds Hydraulic SMC Machine Pressed the bracket

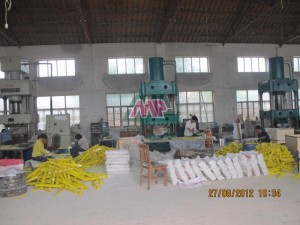

     Trimming the burr inspection the quality Testing bracket’s strength every batch
    Trimming the burr inspection the quality Testing bracket's strength every batch

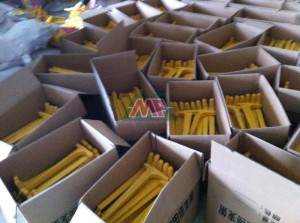

     10 pieces per carton or customerized  Packaged and ready for transportation
    frp cable bracket frp cable bracket export

  • Socket type cable bracket (CGCZ series)

    This bracket is composed of embedded parts and the bracket beam, users can choose the appropriate cable bracket according to the cable diameter and weight.

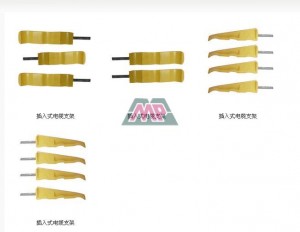

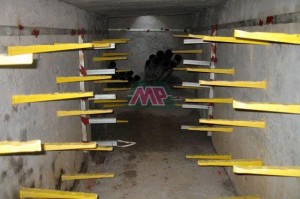

    Socket Type Bracket Photo Socket Type Bracket Project
    Socket Type Bracket Socket type bracket
    Socket type cable bracket Specification
    Model No. Size Unit Total Length Buried Length Effective length
    Socket type bracket 400 mm 400 150 250
    Socket type bracket 450 mm 450 150 300
    Socket type bracket 500 mm 500 150 350
    Socket type bracket 540 mm 540 150 390
    Socket type bracket 600 mm 600 200 400
    Socket type bracket 700 mm 700 200 500
    FRP Cable Bracket Producing Process
     Prepare the SMC Sheet laying on the moulds Hydraulic SMC Machine Pressed the bracket
    Prepare the SMC Sheet laying on the press moulds Hydraulic SMC Machine Pressed the bracket
     Trimming the burr inspection the quality Testing bracket’s strength every batch
    Trimming the burr inspection the quality Testing bracket's strength every batch
     10 pieces per carton or customerized  Packaged and ready for transportation
    frp cable bracket frp cable bracket export

  • Directly buried type cable bracket (CGZZ series)

    This bracket can be directly built into the brick wall, users can select the appropriate bracket according to cable diameter and cable weight.

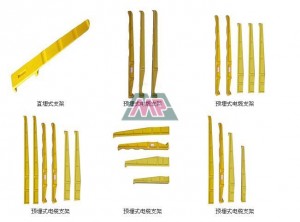

    Directly buried Type Bracket Photo Buried Type Bracket Project

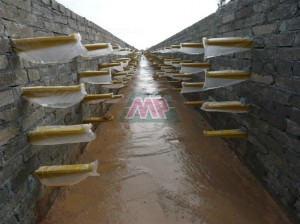

    buried type cable bracket Directly buried type bracket
    Directly buried type cable bracket Specification
    Model No. Size Unit Total Length Buried Length Effective length
    Directly buried type bracket 300 mm 300 150 150
    Directly buried type bracket 400 mm 400 150 250
    Directly buried type bracket 450 mm 450 150 300
    Directly buried type bracket 500 mm 500 150 350
    Directly buried type bracket 540 mm 540 150 390
    Directly buried type bracket 600 mm 600 200 400
    Directly buried type bracket 700 mm 700 200 500

    FRP Cable Bracket Producing Process
     Prepare the SMC Sheet laying on the moulds Hydraulic SMC Machine Pressed the bracket
    Prepare the SMC Sheet laying on the press moulds Hydraulic SMC Machine Pressed the bracket
     Trimming the burr inspection the quality Testing bracket’s strength every batch
    Trimming the burr inspection the quality Testing bracket's strength every batch
     10 pieces per carton or customerized  Packaged and ready for transportation
    frp cable bracket frp cable bracket export

  • Plate type  cable bracket (CGPZ series)

    This bracket is a kind of socket combined cable bracket. Bracket Central is equipped with the right amount of screw holes for securing the cable clips. Apply to cables of greater weight, vibration and has a certain slope in cable trench. According to need to be equipped with glass fiber reinforced plastic or aluminum clips, so that cables and bracket became solid one, can be designed according to users need.

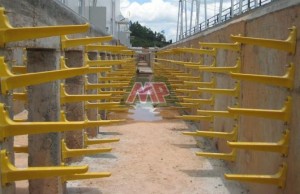

    Plate Type Bracket Photo Plate Type Bracket Project

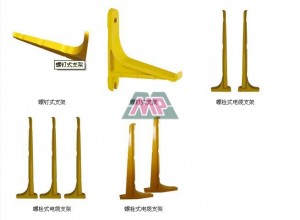

    Plate type  cable bracket Plate type cable bracket
    Plate type cable bracket Specification
    Model No. Size Unit Total Length Buried Length Effective length
    Plate type bracket 150 mm 150 / 150
    Plate type bracket 200 mm 200 / 200
    Plate type bracket 250 mm 250 / 250
    Plate type bracket 300 mm 300 / 300
    Plate type bracket 350 mm 350 / 350
    Plate type bracket 400 mm 400 / 400
    Plate type bracket 450 mm 450 / 450
    Plate type bracket 500 mm 500 / 500
    Plate type bracket 600 mm 600 / 600

    FRP Cable Bracket Producing Process
     Prepare the SMC Sheet laying on the moulds Hydraulic SMC Machine Pressed the bracket
    Prepare the SMC Sheet laying on the press moulds Hydraulic SMC Machine Pressed the bracket
     Trimming the burr inspection the quality Testing bracket’s strength every batch
    Trimming the burr inspection the quality Testing bracket's strength every batch
     10 pieces per carton or customerized  Packaged and ready for transportation
    frp cable bracket frp cable bracket export

  • Combined suspension type  cable bracket (CGFZ series)

    Applicable to already pouring concrete wall structure of the cable tunnel, cable trench and cable work well. The bracket consists of two parts, the pedestal and cross-beam, the pedestal is fixed with expansion bolts or with embedded swallow-tail bolts on the cement walls, pedestals and beams are combined in an articulated form.

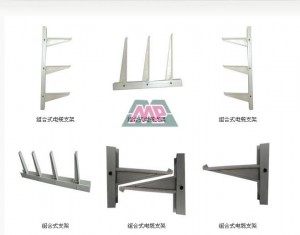

     Combined Type Cbale Bracket Photo Combined Type Bracket Project

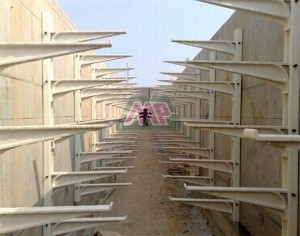

    Combined suspension type  cable bracket Combined Type Cbale Bracket
    Combined suspension type cable bracket Specification
    Model No. Size Unit Total Length Buried Length Effective length
    Combined type bracket 200 mm 200 / 200
    Combined type bracket 250 mm 250 / 250
    Combined type bracket 300 mm 300 / 300
    Combined type bracket 350 mm 350 / 350
    Combined type bracket 450 mm 450 / 450
    Combined type bracket 500 mm 500 / 500
    FRP Cable Bracket Producing Process
     Prepare the SMC Sheet laying on the moulds Hydraulic SMC Machine Pressed the bracket
    Prepare the SMC Sheet laying on the press moulds Hydraulic SMC Machine Pressed the bracket
     Trimming the burr inspection the quality Testing bracket’s strength every batch
    Trimming the burr inspection the quality Testing bracket's strength every batch
     10 pieces per carton or customerized  Packaged and ready for transportation
    frp cable bracket frp cable bracket export
