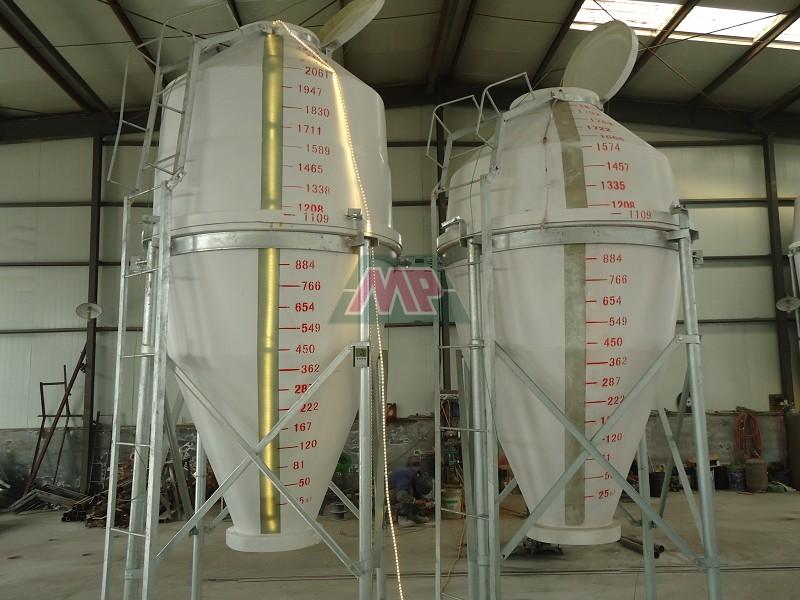

Fiberglass Seed Silo

Fiberglass seed silo,Poultry feed silo,livestock feeding silo,grain storage silos,livestock feed storage,poultry feed storage,feed storage silos

Fiberglass Seed Silo made of fiberglass reinforced plastic (FRP).You can choose the right silo of the appropriate size out of a wide range of products. All systems can be filled pneumatically or by auger. The respective silo size depends on daily feed consumption and required storage time.

Advantages

  • 1. High-quality galvanization of all steel parts and use of fiberglass reinforced plastic (FRP) = long service life;
  • 2. Trouble-free feed withdrawal due to optimum degree of slope in the silo funnel;
  • 3. Auger box either rigid or flexible, adjustable from 0 to 45° – ensures operational safety;
  • 4. Roof shape ensures use of the entire volume;
  • 5. The use of FRP silos allows simple checking on feed level due to the transparency of the material;
  • 6. High functional reliability.

Compare to steel silo:

 Index Steel silo Our FRP silo Result
Mechanical strength 1-2mm  5-10mm higher strength
Heat conductivity 48/w.m.K 5 /w.m.K feed temperature don’t change quickly
Anti-UV 0 yes prevent your feed from going bad
Rust 5-10 years 30 years never rust
  • Fiberglass Seed Silo Specification

    Poultry Seed Silo

    Type Capacity
    (m3)
    Ton Legs silo pcs A B h C D E F
    080400 4 2.4 3 2 3516 1080 745 300 1800 3000 1688
    080600 6 3.6 3 2 4190 1187 850 300 2020 3000 1866
    080800 8 4.8 3 2 4850 1120 785 300 2080 3000 1930
    081000 10 6 3 2 5025 1095 757 300 2250 3000 2075
    081250 12.5 7.5 3 2 5690 1100 745 300 2215 3000 2060
    081800 18 10.8 4 3 6955 1374 1038 400 2492 4000 1883
    082000 20 12 4 3 7265 1314 977 400 2492 4000 1883
    082150 21.5 13 4 3 7420 1314 977 400 2590 4000 1955
    082450 24.5 14.5 4 3 7960 1290 955 400 2600 4000 1960
    082500 25 15 4 3 8150 1115 778 400 2492 4000 1883
    083000 30 18 4 3 8895 1125 790 400 2590 4000 1955

  • FRP Feeding Silo Top  FRP Feeding Silo Bottom
    FRP Feeding Silo top FRP Feeding Silo Bottom
     FRP Feeding Silo Inside  FRP Feeding Silo Base
    FRP Feeding Silo inside FRP Feeding Silo base
     FRP Feeding Silo Frame  FRP Feeding Silo Funnel
    FRP Feeding Silo frame FRP Feeding Silo funnel

  • fiberglass silo frp silo
    frp poultry feeding silo fiberglass feeding equipment silo
